SOLUTIONS

GEL SMF Motorcycle Batteries


A line of SMF (Sealed Maintenance-Free) motorcycle batteries featuring the latest leak-proof GEL technology. Totally maintenance-free and engineered for the harshest conditions and most rugged terrain.

With advanced battery design and unique leak-proof gel technology, the Western Electrical GEL SMF motorcycle battery series is the premium choice for motorcycles, scooters, and sports vehicles. Each battery is built to deliver reliable power for high-draw electrical accessories such as ABS, GPS, and heated grips, ensuring consistent performance on the road.


Completely spill-safe and highly resistant to vibration, these batteries are equally suited for off-road use. Excellent deep-discharge recovery and low self-discharge make them ideal for long-term storage and seasonal riding.

SPECIFICATIONS

GEL SMF SeriesTech DrawingFAQs
Serial No.Battery Model No.VoltageCapacityDimension (mm±2)Assembly FigureTerminal TypeWeight (Kg±5%)CCA (A)
(V)Ah/10hrLWH
1GYB2.5L122.58177105GYB2.5L assembly figureLine1.130
2GYB3L1239756109GYB3L assembly figure61.335
3GTX4L123.51147086GTX4L assembly figure41.450
4GTZ5S124.51147086GTZ5S assembly figure41.665
5GTZ6S12511370106GTZ6S assembly figure41.8470
6GN5-3B125.512060130GN5-3B assembly figure61.9575
7GYB5L-B12612060130GYB5L-B assembly figure62.185
8GTZ7S12611370105GTZ7S assembly figure42.295
9GTX6.5L126.513966102GTX6.5L assembly figure62.395
10GTX7A1271518795GTX7A assembly figure42.5105
11GTX7L12711470133GTX7L assembly figure42.4100
12GTX7DL12715060130GTX7DL assembly figure62.4100
13GYB7-A12713576123GYB7-A assembly figure62.5100
14GTZ10S128.61508795GTZ10S assembly figure43140
15GTX912915287107GTX9 assembly figure43.05135
16GYB9-B12913777133GYB9-B assembly figure62.76120
17GTZ12S121115087105GTZ12S assembly figure43.5160
18GTX12121215087132GTX12 assembly figure43.7180

Note:

1. In the Dimension columns: L = Length, W = Width, H = Height.

2. CCA (Cold Cranking Amps) rating is for reference only. CCA is a theoretically calculated average value. Actual performance may vary due to test conditions and standards.

3. Due to the wide range of battery models, if the battery model you are interested in is not shown in the specification chart, please contact us.

4. The specifications are subject to update without notification for reasons of improvement.

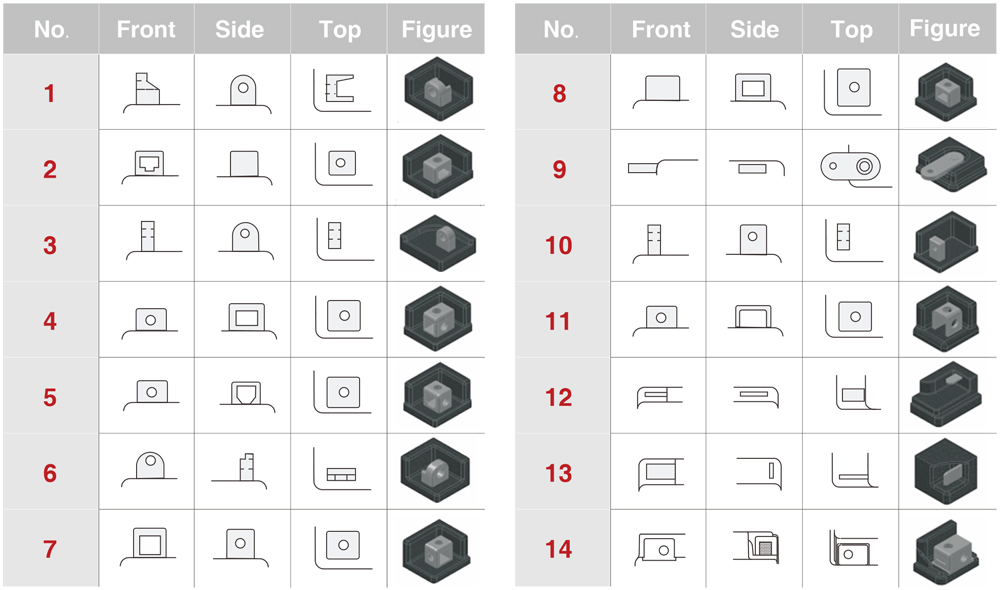

Motorcycle Battery Terminal Type Drawing: 1-14

Motorcycle battery terminal type drawing with terminal codes 1 to 14

Frequently Asked Questions

What is a GEL SMF motorcycle battery and what does SMF mean?

SMF stands for Sealed Maintenance-Free. A GEL SMF motorcycle battery is a sealed valve-regulated battery in which the electrolyte is immobilized as a gel, so no water topping-up is ever required. The battery is leak-proof, can be mounted in almost any position and ships ready to install.

How do I choose between GEL and AGM motorcycle batteries?

Both technologies are sealed and maintenance-free. GEL batteries handle deep discharge and vibration slightly better and suit touring bikes, ATVs and rugged terrain, while AGM batteries deliver stronger cranking current at lower cost and are the usual choice for everyday street motorcycles and scooters.

What does factory-activated mean and what are its benefits?

A factory-activated battery is filled, charged and inspected on the production line, so it arrives fully charged and ready to install - no acid handling, no initial charging and no risk of filling errors. This saves installation time and ensures consistent performance from the first start.

How long does a motorcycle battery last and what affects its life?

A quality sealed motorcycle battery typically serves three to five years. Service life depends mainly on operating temperature, charging system accuracy, riding frequency and storage conditions - regular charging during off-season storage and avoiding deep discharge extend life considerably.

How do I choose the right capacity and CCA for my vehicle?

Match the voltage, capacity (Ah) and CCA to the specifications in your vehicle manual or the battery originally installed. The Ah rating must cover the electrical load of lights, fuel injection and accessories, while the CCA must meet the cranking demand of the engine, especially for cold starts.
